Protecting people, equipment and the environment.
The Sandpiper S1F Non-Metallic 1″ Containment Duty Pump is a lightweight, portable pump that can handle both corrosive fluids and small suspended solids. It is designed to be driven by compressed air or nitrogen, and it offers air-side interchangeability with Sandpiper’s S15, S20, and S30 pumps for reduced inventory costs.

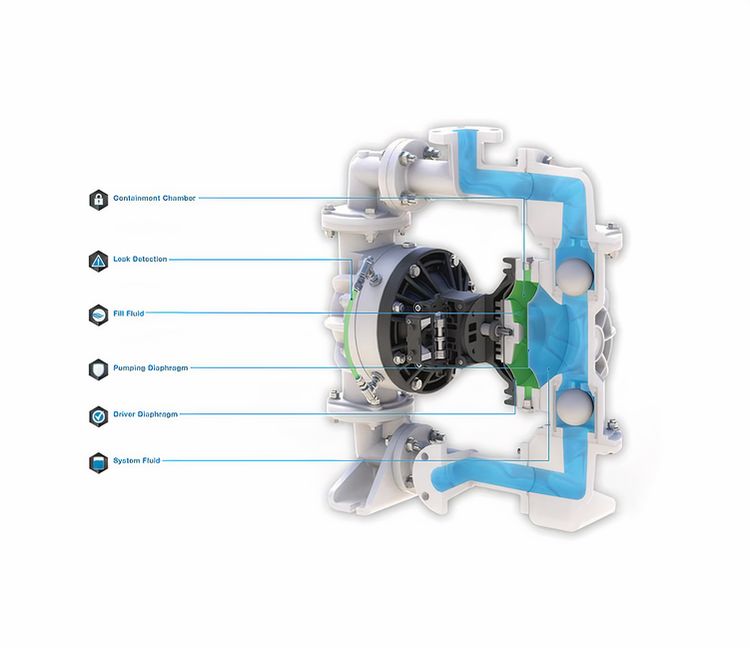

The S1F features a durable, bolted construction that is superior to the clamped-band construction of other pumps, providing exceptional leak-free performance. It also features an ESADS+ feature that allows access to the complete air-operated double-diaphragm system (ADS) without removing the pump from service. This makes it easy to repair or clean the pump in a matter of minutes, compared to 55 minutes for competitors.
This leak-free pump is designed to be driven by compressed air or nitrogen.

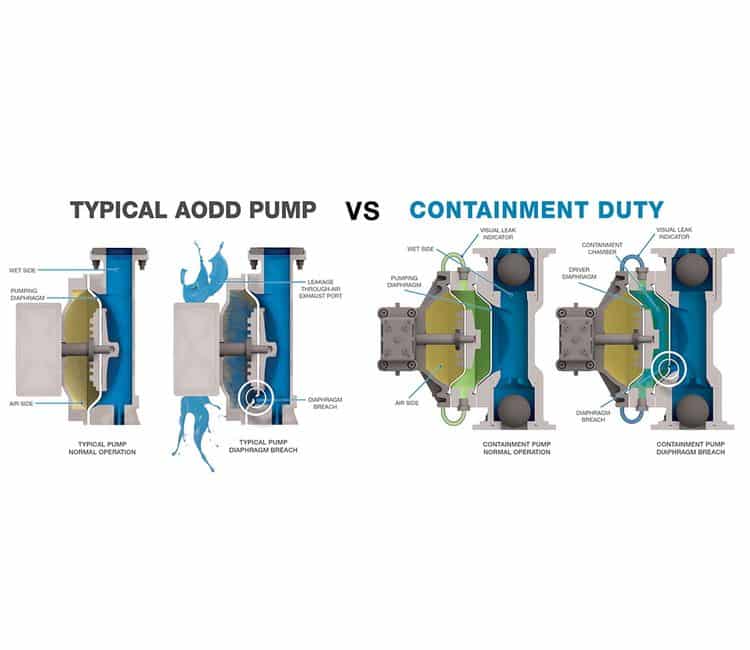

Fluids that need to be contained: Even non-toxic fluids, like clean water, can create hazards, annoyances and safety concerns if people are in or around the area surrounding a pump when a diaphragm fails. When dealing with toxic and hazardous fluids, the need to contain leaks goes from a nuisance to a critical safety need.
| Port Size | 1″ ANSI Flange or PN10 25mm DIN Flange |
| Capacity | 0 to 53 gpm (200 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¼” (6 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | .19 gallons (.72 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight Polypropylene PVDF |
42 lbs (19 kg) 54 lbs (24 kg) |
