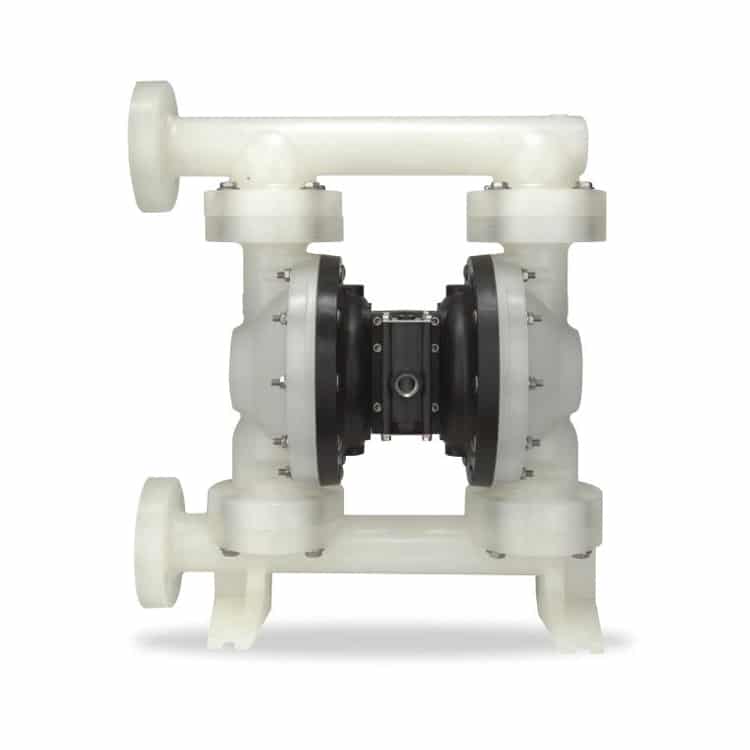

11/2'' EXP Non-Metallic Air Operated Diaphragm Pump

PX15P-XXS-XXX

Maximum Flow gpm (lpm): 123 (465)

Maximum Discharge Pressure psi (bar): 120 (8.3)

Fluid Ports Inlet/Outlet (bsp): 1-1/2” ANSI/DIN Flange (Side or Center)

Material of Construction: Polypropylene, PVDF, Conductive, Polypropylene

Maximum Solids in (mm): 1/4 (6.4)

Maximum Dry Suction Lift ft (m): 14 (4.2)

Product Description

ARO 1-1/2” non-metallic diaphragm pumps are frequently used in transfer, filling, recirculation and supply in Chemical, Industrial and Water/Wastewater treatment markets. Our 1-1/2” models achieve flow rates of up to 123.1 GPM (465.9 LPM) and also offer a diverse selection of material and porting configurations.

Available with Long-life PTFE diaphragms.

Features

The Ultimate in chemical resistant pump design.

Best ‘Total Cost of Ownership’ in the industry.

Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation

Versatility – Broad range in materials of construction for optimum fluid compatibility

Environmentally Sound – Bolted construction for leak-free fluid handling and ribless design to eliminate cracking

Serviceability – Easier service through modular design

Accessories

  • 66084-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67237 Diaphragm Failure Detection (DFD)
  • 67350 Cycle Counter Kit
  • 67341-E15N Flange Connection Kit (side flange)
  • 67341-C15N Flange Connection Kit (center flange)
  • 637389 Air Section Service Kit
  • 637391-XX Fluid Section Service Kit

Pump Casing Materials

  • PVDF (Kynar)
  • Polypropylene

Diaphragm Materials

  • LongLife PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton



Ratio: 1:1

Maximum GPM (LPM): 123 (465)

Displacement per cycle Gallons (Liters): 0.617 (2.34)

Air Inlet (Female): 1/2 – 14 N.P.T.

Fluid Inlet/Outlet: 1-1/2” A.N.S.I./DIN flange (side or center)

Max. operating pressure psi (bar): 120 (8.3)

Suspended solids max. dia. in. (mm): 1/4” (6.4)

Weight lbs (kg):
Polypropylene, Side Ported 42.6 (19.3)
PVDF, Side Ported 63.9 (29)
Polypropylene, Center Ported 42.3 (19.2)
PVDF, Center Ported 55.9 (25.3)

Maximum dry suction lift ft (m) : 14 (4.2)

Sound Level: 70 PSI       60 Cycles/Min  81.0 db(A)

Muffler Included:  93139
