GT500 liquade AODD Pump

P800 51 mm (2″) Pro-Flo Series Bolted Plastic Pump

Product Description

Wetted Part Material

  • Aluminum alloy:33 KG (ATEX Option)
  • SS316:51.5 KG (ATEX Option)
  • Cast iron:47 KG (ATEX Option)



Diaphragm Material

  • Teflon
  • EPDM
  • Viton
  • Santoprene
  • NBR
  • Neoprene



Max. Flow Rate

  • Rubber diaphragm:623 LPM
  • TP diaphragm:630 LPM
  • Teflon PTFE:618 LPM



Max. Suction Lift

  • Rubber:Dry 6.95 M / Wet 8.6 M
  • Thermoplastic compound: Dry 6.7 M / Wet 8.6 M
  • TeflonPTFE:Dry 6.7 M / Wet 9 M



Parameter

  • Liquid inlet:2”
  • Liquid outlet:2”
  • Air inlet:1/2”
  • Max. inlet pressure:8.62 BAR(125 PSI)
  • Max. size solids:6.4 mm (1/4″)
GT500 Specifications figure
GT500 Specifications figure

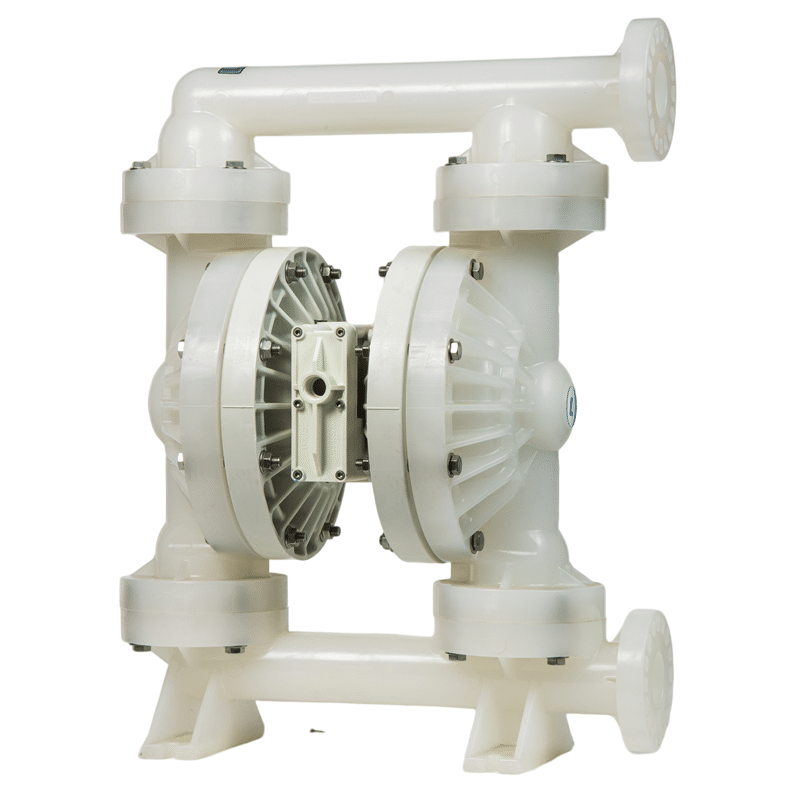

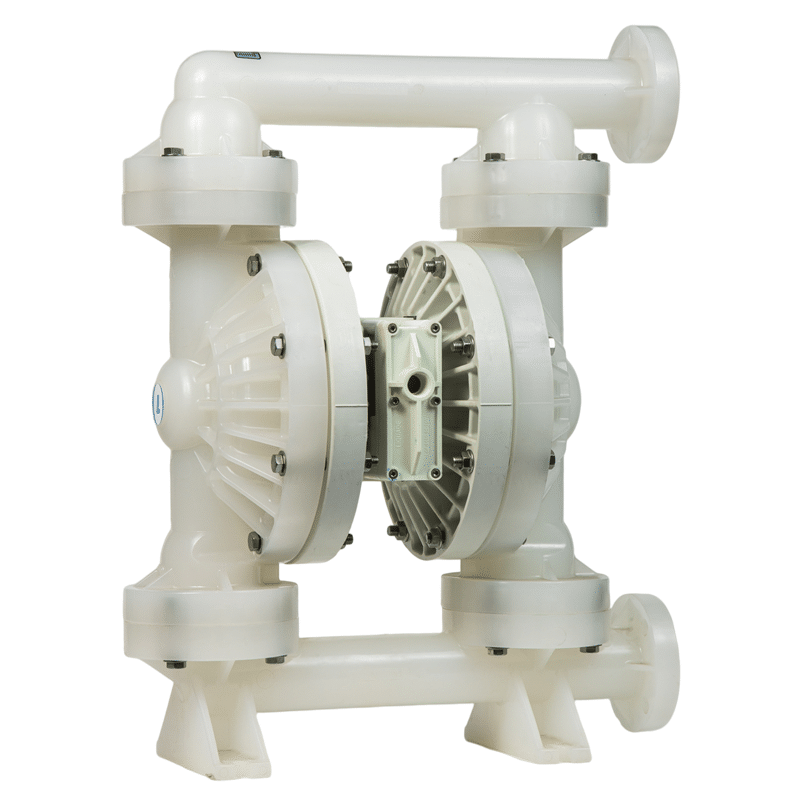

GT500 Product figure
GT500 Product figure
Rubber diaphragm (Medium is water - positive inlet pressure)
Rubber diaphragm (Medium is water – positive inlet pressure)
Teflon diaphragm (Medium is water - positive inlet pressure)
Teflon diaphragm (Medium is water – positive inlet pressure)
