liquade AODD Pump

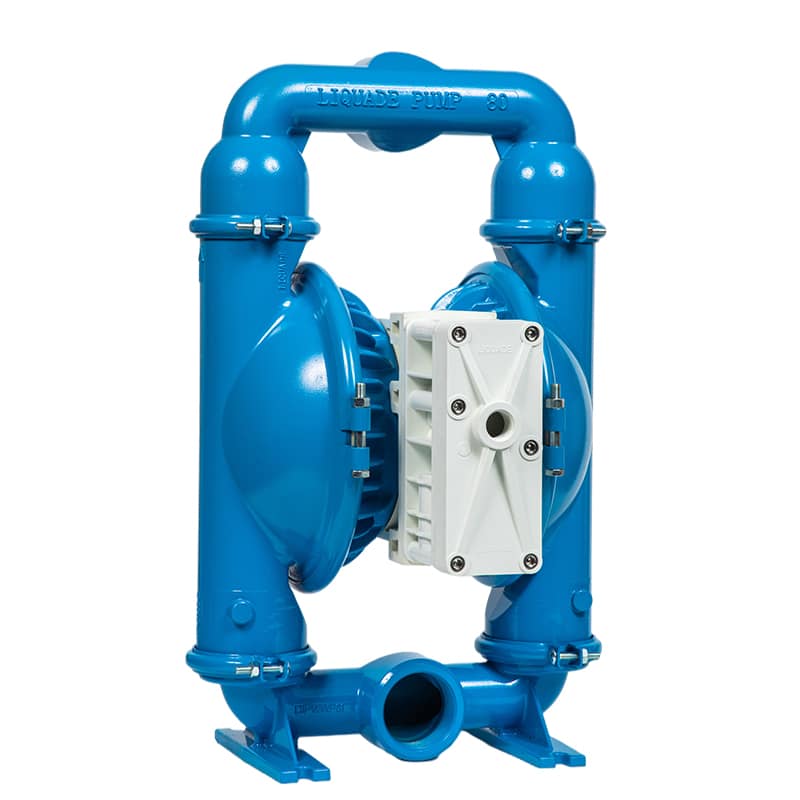

T15 Metal pump has a 76 mm (3″) inlet and 76 mm (3″) outlet and is designed for flows to 878 lpm (232 gpm). The T15 Metal pump is manufactured with wetted parts of aluminum, cast iron or 316 Stainless Steel. The center block of the T15 Metal is constructed of glass-filled polypropylene, aluminum, nickel-plated aluminum, PTFE-coated aluminum or 316 Stainless Steel. A variety of diaphragms, valve balls, and o-rings are available to satisfy temperature, chemical compatibility, abrasion and flex concerns.

Product Description



Wetted Part Material

  • Aluminum alloy:33 KG (ATEX Option)
  • SS316:51.5 KG (ATEX Option)
  • Cast iron:47 KG (ATEX Option)



Diaphragm Material

  • Teflon
  • EPDM
  • Viton
  • Santoprene
  • NBR
  • Neoprene



Max. Flow Rate

  • Rubber diaphragm:623 LPM
  • TP diaphragm:630 LPM
  • Teflon PTFE:618 LPM



Max. Suction Lift

  • Rubber:Dry 6.95 M / Wet 8.6 M
  • Thermoplastic compound: Dry 6.7 M / Wet 8.6 M
  • TeflonPTFE:Dry 6.7 M / Wet 9 M



Parameter

  • Liquid inlet:2”
  • Liquid outlet:2”
  • Air inlet:1/2”
  • Max. inlet pressure:8.62 BAR(125 PSI)
  • Max. size solids:6.4 mm (1/4″)
AODD Specifications figure
AODD Specifications figure
AODD Product figure
AODD Product figure
AODD Rubber diaphragm (Medium is water - positive inlet pressure)
AODD Rubber diaphragm (Medium is water – positive inlet pressure)
AODD Teflon diaphragm (Medium is water - positive inlet pressure)
AODD Teflon diaphragm (Medium is water – positive inlet pressure)
